Sharp Introduces 3 Models of the 1-Bit Digital Audio System
Built in 1-Bit Digital Amplifier for super detailed sound
Next-generation interior audio products boast new styling
| |
OSAKA, JAPAN - Sharp Corporation, a worldwide developer of innovative products and core technologies that are shaping the future of electronics, has announced the introduction into the Japanese market of three models of the 1-Bit Digital Audio System.
The three models-the SD-NX10, SD-CX1, and SD-FX1-have built-in 1-bit amplifiers. The amplifiers sample signals at 2.8 million times per second (2.8 MHz), approximately 64 times the rate of CD sampling, and use a 7th-order delta sigma modulator IC to ensure highly stable amplification of music signals. This means users get faithful sound reproduction that is almost indistinguishable from the original. The 1-Bit Digital Amplifier has already created quite a stir in the high-end audio field.
With these built-in 1-Bit Amplifiers, this series takes audio light years beyond previous standards. It also takes advantage of the energy efficient, compact digital amplifier to offer a wealth of functions in a slim stylish audio package.
1-Bit Digital Systems will transform an entire room while giving advanced audio life for next generation for users who use digital tool such as PC and mobile phone.
[Features]
| 1. | Built-in High-performance 1-Bit Digital Amplifier Gives Super High Resolution 2.8-MHz Sound
All three models use the same 1-Bit Digital Amplifier that's built into our high-end SM-SX100 and SM-SX1 models. This gives high-resolution sound with quick response, resulting in clear, natural sound quality. |
| 2. | Thin, Stylish Profile and 4-Mode Multi-color Light Display
The amplifier and transformer sections of the SD-NX10 are separate from the main body, giving it a thin, bold design. The SD-CX1 incorporates a simple, casual, transparent design, while the SD-FX1 employs an all-in-one thin design that allows you to take it anywhere easily. The display section on all models uses 4-mode multiple color lights, allowing you to express yourself to match your music and moods. |
| 3. | Built-in Circuit for Long Playing and Recording in MD Stereo (MDLP)
This series is compatible with a new MD standard that allows you to record up to 320 minutes, the equivalent of four CDs, onto a single 80-min. MD. |
Sharp intends to include 1-Bit Digital Amplifier technology on all of its audio and visual products: from MD portables and home theater systems to LCD Display Televisions, PCs, and personal information tools.
| Product name | 1-Bit Digital System |
| Model name | SD-NX10 | SD-CX1 | SD-FX1 |
| Suggested retail price (not including tax) | 110,000 yen | 70,000 yen | 55,000 yen |
| Monthly production | 5,000 units | 20,000 units | 15,000 units |
| Date of introduction in Japan | November 21, 2000 | November 11, 2000 | January 11, 2001 |

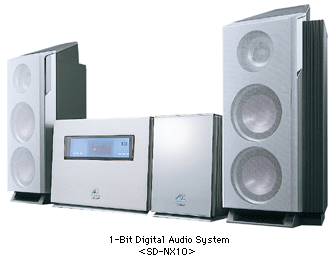

[SD-NX10 specifications]
Main unit section
| Product name | 1-Bit Digital System |
| Model name | SD-NX-S (Silver) | |
MiniDisc section
| Product type | MiniDisc digital audio system |
| Recording system | Magnetic field modulation overwrite system |
| Reading system | Non-contact optical reading system (using semiconductor laser) |
| RPM | Approx. 400 to 900 |
| Error correction system | Advanced Cross Interleaved Reed-Solomon Code (ACIRC) |
| Audio compression system | ATRAC (Adaptive TRansform Acoustic Coding), ATRAC3 24-bit encoding scheme |
| Number of channels | Stereo: 2 channels; Monaural: 1 channel (extended play mode) |
| Sampling rate | 44.1 kHz |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Compact disc section
| Product type | Compact disc digital audio system |
| Reading system | Non-contact optical reading system (using semiconductor laser) |
| Number of channels | Stereo: 2 channels |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Tuner section
| Reception frequency | FM: 76.0 to 108 MHz
(TV sound: channels 1 to 3)
AM: 522 to 1, 629 kHz |
| Circuit system | Quartz digital synthesizer system
Super heterodyne AM/FM tuner |
| Antenna | FM (75 ohms), AM, grounding | |
Timer and clock
| Type | Digital clock |
| Time | Can be turned on and off once a day | |
Remote controller
| Power supply | 3-V DC (2 AA batteries included) | |
Common section
| Input jacks | Digital external input: Square-type
optical input (1)
Analog external input: 500 mV (47 kohms)
Pin jack (L/R) (1) |
| Output jacks | System audio output: Pin jack (L/R) (1)
Analog external output: 500 mV (47 kohms)
Pin jack (L/R) (1)
Headphone output: 16 to 50 ohms (32 ohms recommended)
3.5-mm stereo mini jack (1) |
| System jacks | Square-type dedicated jack (1) |
| External dimensions | 318 (W) X 210 (H) X 93 (D) mm (EIAJ) |
| Weight | Approx. 3.6 kg | |
Amplifier and transformer section
| Max. rated power output | 50 W (25 W + 25 W) (EIAJ) |
| A/D noise shaping | 7th-order delta sigma modulation |
| Input jack | System audio input: Pin jack (L/R) (1) |
| Output jack | Speaker output: 6 ohms |
| System jacks | Square-type dedicated jack (1) |
| Power supply | 100 V AC, 50/60 Hz |
| Rated power consumption | 60 W AC |
| External dimensions | 160 (W) X 210 (H) X 136 (D) mm (EIAJ) |
| Weight | Approx. 3.5 kg | |
Speaker section
| Product type | Bass reflex (removable speaker net) |
| Speaker | Woofer: 10 cm (2)
Tweeter: 3-cm soft-dome type |
| Max. input | 50 W |
| External dimensions | 187 (W) X 423 (H) X 200 (D) mm (EIAJ) |
| Weight | Approx. 3.7 kg x 2 | |
Accessories
| Remote controller (1), FM antenna (1), Power cord (1), Speaker cords (2), AA battery (2), System cord (1), Audio connector cord (1), AM loop antenna (1), User's manual (1), Warranty (1) | |
[SD-CX1 specifications]
| Product name | 1-Bit Digital System |
| Model name | SD-CX1-W (pearl white), SD-CX1-A (misty blue), SD-CX1-G (glass green) |
MiniDisc section
| Product type | MiniDisc digital audio system |
| Recording system | Magnetic field modulation overwrite system |
| Reading system | Non-contact optical reading system (using semiconductor laser) |
| RPM | Approx. 400 to 900 |
| Error correction system | Advanced Cross Interleaved Reed-Solomon Code (ACIRC) |
| Audio compression system | ATRAC (Adaptive TRansform Acoustic Coding), ATRAC3 24-bit encoding scheme |
| Number of channels | Stereo: 2 channels; Monaural: 1 channel (extended play mode) |
| Sampling rate | 44.1 kHz |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Compact disc section
| Product type | Compact disc digital audio system |
| Reading system | Non-contact optical reading system (using semiconductor laser) |
| Number of channels | Stereo: 2 channels |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Tuner section
| Reception frequency | FM: 76.0 to 108 MHz
(TV sound: channels 1 to 3)
AM: 522 to 1, 629 kHz |
| Circuit system | Quartz digital synthesizer system
Super heterodyne AM/FM tuner |
| Antenna | FM, AM, grounding | |
Timer and clock
| Type | Digital clock |
| Timer | Can be turned on and off once a day | |
Remote controller
| Power supply | 3V DC (2 AA batteries included) | |
Amplifier and common section
| Max. rated power output | 40 W (20 W + 20 W) (EIAJ) |
| A/D noise shaping | 7th-order delta sigma modulation |
| Input jack | Analog external input: 500 V (47 Kohms)
Pin jack (L/R) (1) |
| Output jack | Speaker output: 6 ohms
Headphone output: 16`50 ohms (32 ohms recommended)
3.5-mm stereo mini jack (1) |
| Power supply | 100 V AC, 50/60 Hz |
| Rated power consumption | 50 W AC |
| External dimensions | 330 (W) X 208 (H) X 187 (D) mm (EIAJ) |
| Weight | Approx. 5.0 kg | |
Speaker section
| Product type | Bass reflex (removable speaker net) |
| Speaker | Woofer: 12 cm (2)
Tweeter: 2-cm soft-dome type |
| Max. input | 40 W |
| External dimensions | 170 (W) X 300 (H) X 186 (D) mm (EIAJ) |
| Weight | Approx. 2.0 kg X 2 | |
Accessories
| Remote controller (1), FM antenna (1), Power cord (1), Speaker cords (2), AA battery (2), AM loop antenna (1), User's manual (1), Warranty (1) | |
[SD-FX1 specifications]
| Product name | 1-Bit Digital System |
| Model name | SD-FX1-S (platinum silver), SD-FX1-W (pearl white) |
MiniDisc section
| Product type | MiniDisc digital audio system |
| Recording system | Magnetic field modulation overwrite system |
| Reading system | Non-contact optical reading method (using semiconductor laser) |
| RPM | Approx. 400 to 900 |
| Error correction system | Advanced Cross Interleaved Reed-Solomon Code (ACIRC) |
| Audio compression system | ATRAC (Adaptive TRansform Acoustic Coding), ATRAC3 24-bit encoding scheme |
| Number of channels | Stereo: 2 channels; Monaural: 1 channel (extended play mode) |
| Sampling rate | 44.1 kHz |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Compact disc section
| Product type | Compact disc digital audio system |
| Reading system | Non-contact optical reading system (using semiconductor laser) |
| Number of channels | Stereo: 2 channels |
| Frequency response | 20 to 20,000 Hz (+1/-3 dB) (EIAJ) |
| Wow and flutter | Below measurable limits (+-0.001% W peak) (EIAJ) | |
Tuner section
| Reception frequency | FM: 76.0 to 108 MHz
(TV sound: channels 1 to 3)
AM: 522 to 1, 629 kHz |
| Circuit system | Quartz digital synthesizer system
Super heterodyne AM/FM tuner |
| Antenna | FM, AM, grounding | |
Timer and clock
| Product type | Digital clock |
| Timer | Can be turned on and off once a day | |
Remote controller
| Power supply | 3-V DC (2 AA batteries included) | |
Amplifier and common section
| Max. rated power output | 10 W (5 W + 5 W) (EIAJ) |
| A/D noise shaping | 7th-order delta sigma modulation |
| Input jacks | Analog external input: 500 V (47 Kohms)
Pin jack (L/R) (1) |
| Output jack | Headphone output : 16 to 50 ohms
(32 ohms recommended)
3.5-mm stereo mini jack (1) | |
Speaker section
| Product type | Bass reflex (removable speaker net) |
| Speaker | Woofer: 8 cm (2)
Tweeter: 4 cm |
| Power supply | 100 V AC, 50, 60 Hz |
| Rated power consumption | 35 W AC |
| External dimensions | 442 (W) X 284 (H) X 182 (D) mm (EIAJ) |
| Weight | Approx. 6.1 kg | |
Accessories
| Remote controller (1), FM antenna (1), Power cord (1), AA battery (2), AM loop antenna (1), User's manual (1), Warranty (1) | |
[Separately sold accessories]
SD-CX1
Speaker net
(blue) | AD-CX1AN | List price 2,000 yen | On sale November 11 |
Speaker net
(pink) | AD-CX1PN | List price 2,000 yen | On sale November 11 |
Speaker net
(yellow) | AD-CX1YN | List price 2,000 yen | On sale November 11 | |
SD-FX1
Speaker net
(blue) | AD-FX1AN | List price 2,000 yen | On sale January 11 |
Speaker net
(pink) | AD-FX1PN | List price 2,000 yen | On sale January 11 |
Speaker net
(yellow) | AD-FX1YN | List price 2,000 yen | On sale January 11 | |
|
|
