AIWA INTRODUCES AM-R10 PORTABLE MINI DISC PLAYER FEATURING TV/FM/AM
TUNER,
ILLUMINATED LCD REMOTE CONTROL
"AM-R10 "
The design and specifications of this model are just for
Japan domestic market only

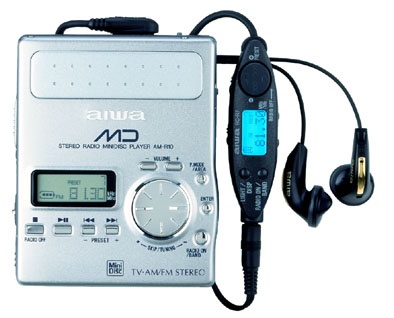

TOKYO - Aiwa Co., Ltd. has introduced the AM-R10 portable Mini Disc (MD) player
equipped with a built-in three-band (TV/FM/AM) tuner, which allows listeners to enjoy
their favorite radio and TV programs. Aiwa is aiming to expand the market for MD players
from young people to executives and senior citizens.
The portable AM-R10 is simple to use, thanks to an illuminated LCD remote control and a
large shuttle dial on the main unit. The remote control's LCD panel makes it easy to find
MD disc names, program names, track numbers, and frequency ranges, and monitor operation
at a glance. The remote is backlit for easy operation in any light conditions. The shuttle
dial on the main unit allows the listener to quickly skip to a desired MD program or
select a radio station.
The AM-R10 also features an optional monaural playback mode and double-speed playback.
The rechargeable batteries (charger included) provide up to seven hours of operation on a
single charge.
Model: AM-R10
Suggested retail price: ¥34,800 (not including tax)
Initial launch: September 21
Production volume: 3,000 units (initial monthly production)
Main Features
* Backlit LCD remote control unit
The LCD display on the remote control unit makes it easy to monitor MD and tuner
operation, and is easy to read even in the dark.
* 3-band (TV/FM/AM) worldwide synthesized tuner and one-point auto area
Stations in 43 areas and JR shinkansen bullet trains nationwide are pre-programmed.
One-point auto area makes it simple to tune in local stations as you travel.
* Large shuttle dial for easy operation
The shuttle dial makes it easy to skip MD tracks or select a radio station.
* Monaural playback mode
MDs recorded in monaural mode, can be played back.
* Double-speed playback function
* 7-hour continuous playback on a single charge
* Perfect-fit headphones
Silicon rubber air cushions on ear caps ensure a tighter seal with the ear for enhanced
bass reproduction.
* Aiwa's unique Dynamic Super Linear Bass (DSL) (2 steps)
* Repeat (one program/all programs)/random playback
* 3-step battery level indicators on both main unit and remote control confirm remaining
battery life.
* Silver body color
| Radio frequency
range |
Japan: AM 531-1629 kHz, FM 76-90
MHz, TV channels 1-12;
USA: AM 530-1710 kHz, FM 87.5-108.1 MHz;
EU: AM 531-1602 kHz, FM 87.5-108 MHz |
| Channels |
Two stereo/One monaural |
| Frequency range |
20 - 20,000Hz, ± 2dB (at 10 K ohms
load) |
| Output terminals |
Headphone (stereo mini jack) |
| Headphone output |
10mW per channel |
| Power source |
Lithium ion rechargeable battery
DC3.6V (included); DC4.5V (AA cell x 3 using included dry battery case); 100 VAC household
current (using included AC adapter); Car power source DC12V/24V (using optionally
available car adapter DC-550) |
| Battery life MD
playback: |
Rechargeable battery: Approx. 7
hours; Alkaline batteries: Approx. 19 hours; Rechargeable battery+alkaline batteries:
Approx. 26 hours |
| FM reception : |
Rechargeable battery: Approx. 11
hours; Alkaline batteries: Approx 33 hours; Rechargeable battery+alkaline batteries:
Approx. 45 hours |
| Full charging
time |
Approx. 2 hours |
| Dimensions |
Approx. 80.9W x 97.8H x 26.4D (mm) |
| Weight |
Approx. 255g (including
rechargeable battery)
Approx. 225g (main body) |
| Accessories |
LCD remote control, stereo
headphones, AC adapter (AC-D401), lithium ion rechargeable battery, battery case (for 3 AA
batteries), carrying pouch |
(*The design and specifications of this model are just for Japan domestic market only)
