August 29, 2000
AIWA CO.,LTD.


AIWA INTRODUCES NEW PORTABLE MD PLAYER
FEATURING EXTRA-LONG PLAYBACK TIME

"AM-HX70"

The design and specifications of this model are just for
Japan domestic market only

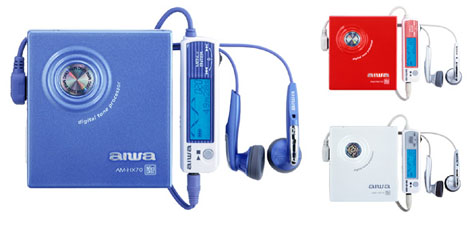

Photo(AM-HX70)

TOKYO - Aiwa Co., Ltd. has introduced a fashionable portable MD player, the AM-HX70, which offers an excellent array of features yet is perfect for carrying.

The AM-HX70 has a convenient power-save function and track selection functions, including program search function that allows listeners to see the title of every track and select the one they want to hear; and 25-track programmable playback function to select up to 25 tracks and play them in any order desired. Other features include: (1) A wavy, iridescent finish on the exterior, available in three colors; (2) Approximately 67 hours continuous MD playback; (3) Digital tone processor lets listeners select their favorite sound quality; (4) Sentence repeat, which is convenient for MD playback when studying a foreign language; and (5) Convenient alarm functions to remind commuters when their bus or train stop is coming up, or to help time workouts.

Fact Sheet
AM-HX70 Portable MD Player

Model: AM-HX70
Suggested retail price: ¥27,800 (not including tax)
Initial launch: September 10
Production volume: 5,000 units (initial monthly production)

Main Features
* Clear coating with wavy, iridescent finish on exterior
Three base colors - blue, red, and white - are available for the main unit and remote control unit. The surface of the main unit is highlighted by a glossy, beautiful clear-coating finish. This wavy, iridescent finish is an eye-catching design feature that alters color as the viewing angle changes.
* 13.5mm-wide compact body
* Power-save function boosts battery life.
By activating the power-save function on the main unit's HOLD switch, the LCD remote control unit is not displayed when playing back MDs, thus increasing battery life.
* Approximately 67 hours of continuous playback, using both the rechargeable battery and included alkaline battery.
* Digital tone processor
Listeners can select their favorite tones from three patterns - high sound (-3~+3) and low sound (-3~+6).
* Sentence repeat, convenient for MD playback when learning a language.
Listeners can repeatedly play back a sentence that is punctuated with approx. half a second of silence.
* Program search function allows listeners to see the title of every track and select the ones they want to hear.
Listeners can view the titles on the remote control unit's LCD panel even while a disc plays.
* 25-track programmable playback function lets users select up to 25 tracks and play them in the order they choose.
* Backlit LCD remote control unit with 10-character display
The LCD on the remote control unit makes it easy to read the disc and track names and track number, and monitor the unit's operation even in the dark.
* Convenient alarm functions
The alarm is programmable from 1 minutes up to 180 minutes, with a duration of up to 30 seconds. This convenient feature reminds listeners when their bus or train stop is approaching, and can help time workouts.
* 40-second skip preventing memory eliminates skips caused by shock and vibration.
* Resume function allows playback to restart from the point where it stopped.
* Repeat (one program/all programs) playback/random playback
* Ear-guard function prevents the sound volume from going too high.
* Monaural playback mode
The AM-HX70 can automatically recognize and play back MDs recorded in monaural mode.
* Perfect-fit headphones
Silicone rubber air cushions on ear caps ensure a tighter seal with the ear for enhanced bass reproduction.

Main Specifications

Channels 2 stereo/1 monaural
A/D, D/A converter 1 bit
Frequency range 20-20,000Hz, ±1dB (with 10 ohm load)
Output terminals Headphone jack (stereo mini jack)
Headphone max. output 8mW per channel (load impedance 16 ohms)
Power source Nickel-hydrogen rechargeable battery DC1.2V (supplied), 1 AA alkaline battery, DC1.5V (using supplied battery case), 100 VAC household current (using optional AC adapter)
Battery life (continuous playback) With power-save off:
   Rechargeable battery: Approx. 19 hours
   Alkaline battery: Approx. 29 hours
   Rechargeable battery + alkaline battery: Approx. 51 hours
With power-save on:
   Rechargeable battery: Approx. 25 hours
   Alkaline battery: Approx. 38 hours
   Rechargeable battery + alkaline battery: Approx. 67 hours
Full charging time Approx. 70 minutes
Dimensions Approx. 71.6W x 77.7D x 13.5H (mm) (not including protrusions)
Weight Approx. 85g (including rechargeable battery/not including battery case)
Accessories LCD remote control, stereo headphones, battery charger, nickel-hydrogen rechargeable battery, battery case (for 1 AA battery), rechargeable battery carrying case, carrying pouch, clip

(*The design and specifications of this model are just for Japan domestic market only)
