March 15, 2000
AIWA CO.,LTD.


AIWA'S NEW MD COMPONENT HI-FI SYSTEM FEATURES BUILT-IN SUBWOOFER AND MULTI-AMPLIFIER SYSTEM FOR DYNAMIC SOUND

"XR-HG5MD"

The design and specifications of this model are just for
Japan domestic market only

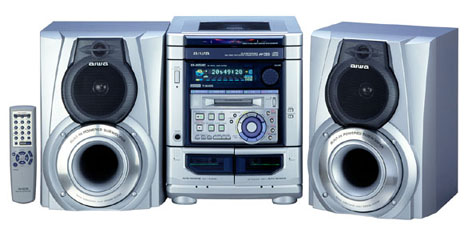

Photo(XR-HG5MD)

TOKYO - Aiwa Co., Ltd. has introduced the XR-HG5MD mini MD component system, with a built-in subwoofer and multi-amplifier system for top-quality sound reproduction. Both these technologies were until recently available only on high-end audio systems

The XR-HG5MD's built-in subwoofer brings mini component systems to a whole new level of performance. What's more, it eliminates the need to buy a separate subwoofer system to enjoy deep, dynamic bass reproduction as well as crystal-clear vocals and other mid- and high-frequency sounds.

The main unit's translucent blue acrylic front panel creates an exciting, contemporary look.. The XR-HG5MD also features a powerful 120W amplifier system, QSURROUND, an MD deck, 3CD auto changer, and double cassette deck. A single hit recording function makes it easy to record one track from CDs onto an MD. The XR-HG5MD has it all - stylish design, great sound, and a full range of advanced functions.

Fact Sheet
XR-HG5MD Mini MD Component System

XR-HG5MD
Suggested retail price: ¥49,800 (not including tax)
Initial launch: April 1
Production volume: 5,000 units (initial monthly production)

Main Features
* Built-in Subwoofer System and Multi-Amplifier System
The built-in subwoofer speaker system enhances low-range sound, because low-frequency signals are transmitted from a separate amplifier and reproduced in a separate subwoofer cavity in the speaker cabinet. The result is clearer, richer bass reproduction than conventional bass-reflex systems, without affecting mid- to high-range signals.
The XR-HG5MD is equipped with four power amplifiers - two separate left/right circuits for low-range and mid-and high-range signals. (Low-range circuit: 45W/channel, mid-and high-range circuit: 15W/channel). The multi-amplifier system offers two main improvements over conventional systems with only left/right amplifiers: less interference between low- and high-range signals, and more precise filter characteristics, which result in improved reproduction of low-, mid- and high-frequency ranges. The XR-HG5MD also features a 3-way speaker system (Low-range circuit: subwoofer, mid-and high-range circuit: full-range loudspeaker and supertweeter).
* High-powered 120W amplifier reproduces dynamic sound.
* QSURROUND offers natural stereophonic surround effects.
* "T-Bass" ensures powerful low-range sound reproduction.
* Multi-function MD deck ensures precise recording and editing
(1) Direct recording (all programs/one program) from CD to MD.
(2) "Single hit" recording for one track from CD to MD
(3) Simultaneous recording from CD to MD and cassette
(4) Full editing functions (divide, combine, move, erase)
(5) Monaural extended recording mode allows recording up to 160 minutes on an 80-minute MD.
(6) Double-speed playback function ensures faster, more efficient program selection.
(7) Multi jog dial allows simple inputting of up to 50 alphanumeric or kana characters.
(8) 30-track MD program playback/random playback
(9) Display shows remaining MD recording time
(10) Auto mark, time mark, and manual mark functions for MD recording
(11) High-quality sound 20 bit A/D, D/A converter
* Sampling rate converter for digital recording from BS/CS digital broadcasts and DAT to MD.
* Three CD auto changer
(1) Disc change function: The other two CDs can be changed while another CD plays.
(2) Disc direct function: A designated CD can be played immediately.
(3) Other functions include continuous playback of three CDs, program playback, and repeat playback.
* Double cassette deck (playback reverse + record playback reverse)
* 20-track music calendar
* Timer (on timer/record/sleep)
* Music genre position (rock/pop/classical)
* 30-program CD playback: program, random, repeat
* CD optical digital output terminal
* MD optical digital input terminal and audio input terminal
* Remote control unit
* FM stereo wide/AM stereo synthesized tuner (32 stations can be preset)
* CD blank skip function
* CD-R/RW playback
Note: The XR-HG5MD may malfunction when playing CD-R/RW discs recorded on certain types of equipment.
* Silver color

Main Specifications
Frequency range FM 76-108MHz (TV channels 1-3), AM 531-1602 kHz
Timer Daily/sleep timer (programmable from five minutes up to four hours in five-minute intervals)
Amplifier rated output power Low-range circuit: 45W+45W (130Hz, 6 ohms, 10%, EIAJ)Mid-and high-range:15W+15W (1 kHz, 8 ohms, 10%, EIAJ)
Cassette deck F characteristics 50-15,000Hz (normal)
MD deck MD channels: Two stereo, one monauralRecording time length: Max. 160 minutes (with 80-minute disc, monaural recording)A/D D/A conversion: 1 bitF characteristics: 20-20,000Hz +0.5- -1.5dBSampling rate converter input: 32/44.1/48 (kHz)
Input terminals Video/aux, digital in
Output terminals Speakers (low frequency: 6 ohms; high frequency: 8 ohms), surround speakers (8-16 ohms), headphones, CD digital out
Power source/ power consumption 100VAC/145W0.9W with power off in energy-saving mode
Speakers Built-in subwoofer, 3-way system (magnetically shielded, EIAJ), 16cm subwoofer, 10cm full range, 2cm super tweeter
Dimensions/weight Main unit: 260 W x 326.5 H x 348 D (mm)/8.2kg
Speakers (each): 240 W x 324 H x 270 D (mm)/4.8kg
Accessories Remote control unit, two AA batteries, AM antenna, FM antenna

(*The design and specifications of this model are just for Japan domestic market only)
